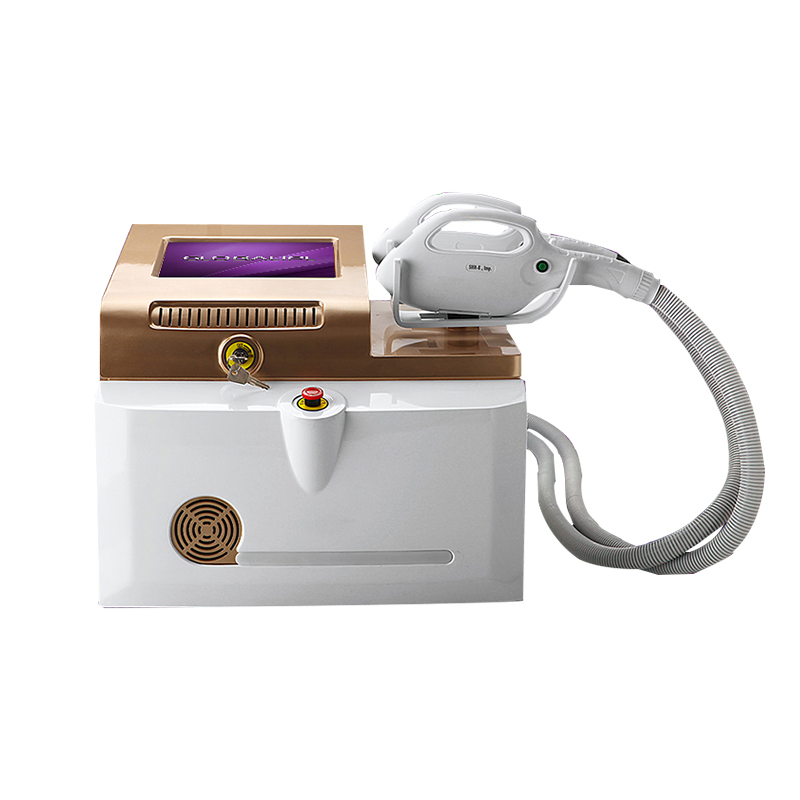

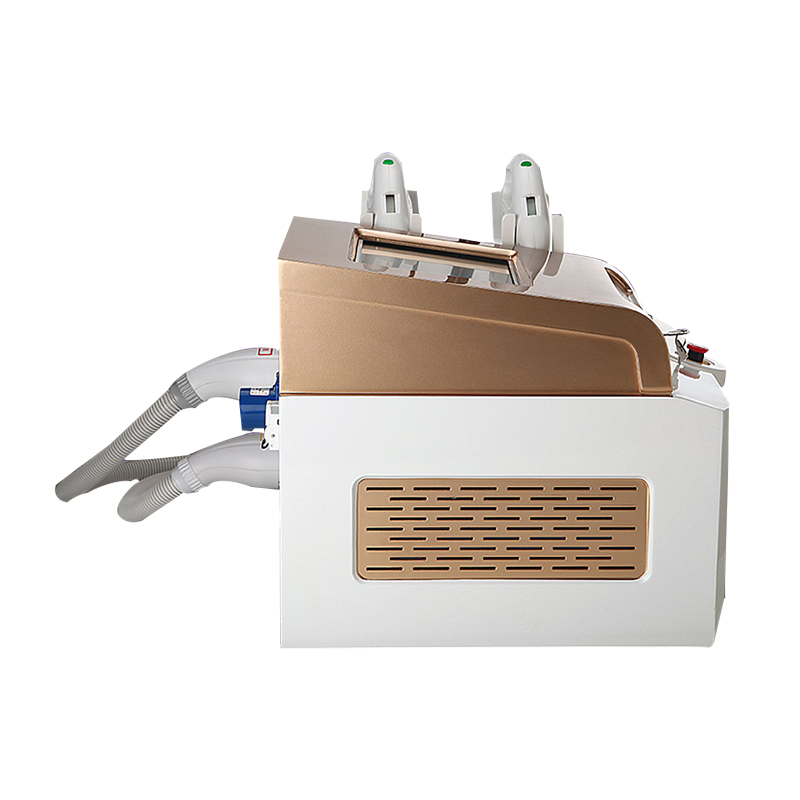

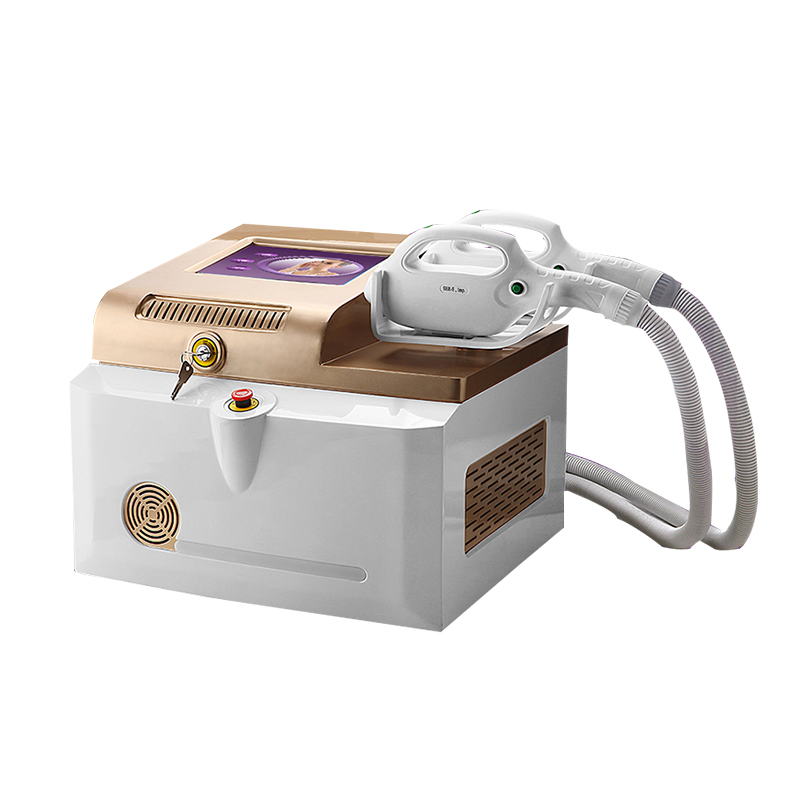

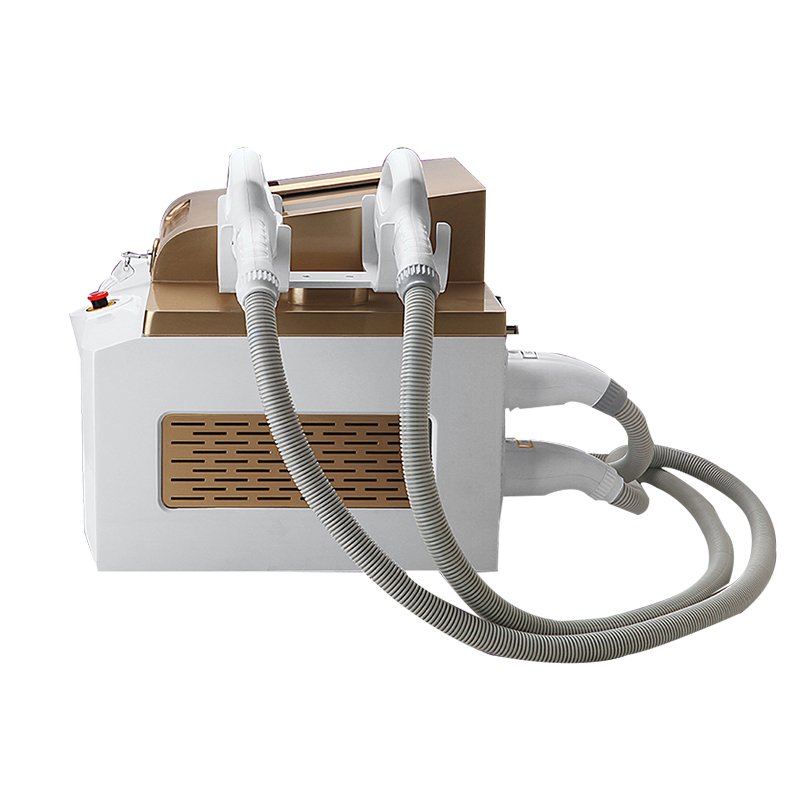

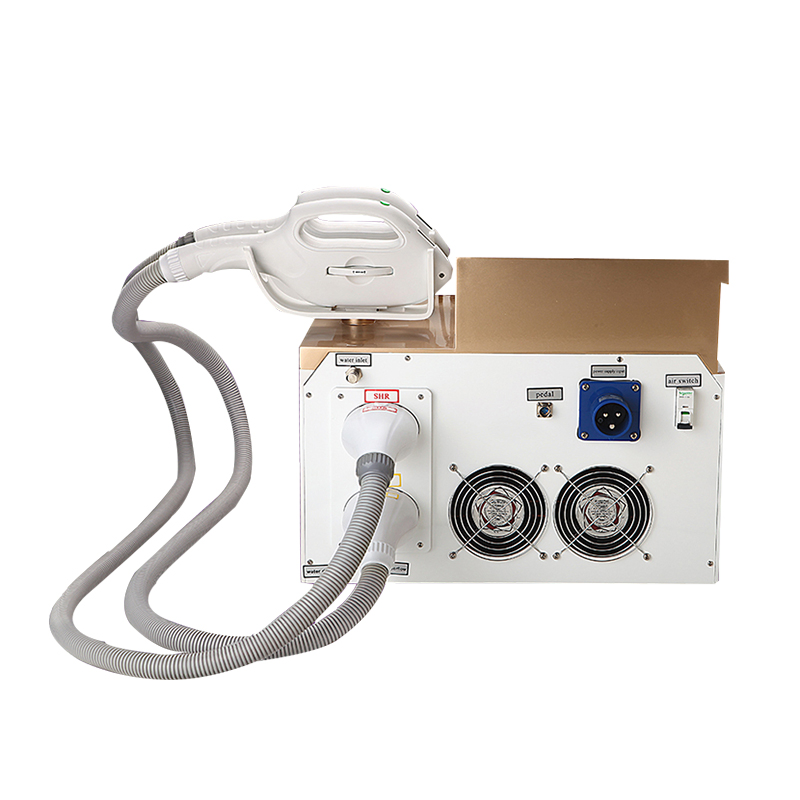

IPL Beauty Device with Alarm Protection System for Home Use

Customization: Available
Type: Multifunctional Machine
Theory: IPL+RF+Elight

Product Description

IPL Beauty Device with Alarm Protection System for Home Use

Basic Info

Model NO. US608
Application Salon, Home
Portable Portable
Certificate Import & Export Licence
Handle 1 E Light
Handle 2 RF
Handle 3 IPL
OEM Accept
Transport Package Aluminium Alloy Packing Box with Thick Sponge
Specification 55x40x39cm
HS Code 85437099
Production Capacity 1000 Sets Per Month

Functions & Treatments

Core Functions

  • E Light / IPL: Hair removal, skin rejuvenation, wrinkle removal, vascular therapy, acne removal, etc.
  • RF: Wrinkle removal, skin tightening, body lifting, etc.

Treatments of Different Wavelengths

480nm Vascular treatment
530nm Skin rejuvenation, acne therapy
590nm Pigment treatment
640nm Hair removal
690nm Breast lifting treatment
IPL Beauty Device with Alarm Protection System for Home Use

Product Features & Advantages

Super Power Output

IPL machine designed with a high power configuration of 2200W.

🔌
Premium Components

Equipped with 100% American CPC produced water connector and Germany Harting company produced electronic connector for high quality and long lifetime.

🛡️
Robust Inner Structure

Unique design of the E-light handle and inner structure protects the inner parts from damage no matter the pulling strength applied.

❄️
Advanced Cooling System

Most advanced USA cooling system guarantees long working periods continuously.

🚨
Intelligent Protection System

Alarm protection system for water flow and water temperature stops all functions immediately in case of risk, protecting people and machine instantly.

Painless & Safe Treatment

Sapphire cooling technology drops temperature to 0~10°C, maximizing comfort during treatment with no post-treatment scarring.

💻
User-Friendly Interface

Simple software design with straightforward parameters setting and easy operation.

IPL Beauty Device with Alarm Protection System for Home Use
IPL Beauty Device with Alarm Protection System for Home Use

Working Theory

IPL Hair Removal

Intense Pulsed Light produces high-intensity light in short periods. The emitted light is absorbed by melanin in the hair follicle and converted into thermal energy, which destroys the hair by cauterizing connected vessels. Hair falls out naturally and stops growing back.

Since different individuals have various pigments, the flash lamp produces a multitude of wavelengths to target diverse pigments in one pulse. When the selected magnetic pulse acts on the skin, follicles in the growth phase absorb energy, naturally aging and shedding hair. Pigment granules are eventually cleared via metabolism.

Skin Rejuvenation

Pulses of filtered light penetrate the epidermis to target the dermis layer containing melanin and haemoglobin. The affected cells are naturally cleared by the lymphatic system. A beneficial side effect is the stimulation of collagen production, which improves skin texture, reduces fine lines, and restores skin vitality.

E-Light (IPL + RF)

E-light integrates IPL pulse light with radio frequency treatment. Following light pyrolysis theory, intense pulsed light is targeted directly at the dermis, allowing lesions to selectively absorb light energy without harming surrounding tissue. Unlike standard IPL, E-light stimulates deep skin collagen, rearranges elastic fibers, enhances vascular tissue, smooths wrinkles, and contracts pores under comparable power conditions.

Technical Specifications

E-light (IPL+RF) system Multi-band hand-piece 480nm, 530nm, 590nm, 640nm, 690nm (410nm/490nm)
Light spot area 13x30mm² (13x40mm²)
Energy density 1-50J/cm²
Power supply 1800W
Frequency 1, 2, 3, 4s
Pulse Number 1~6
Pulse space 1-100ms
RF Frequency 10MHz
RF Energy 1-50 J
IPL system Spot size: 15x50mm²
Energy density 1-50J/cm²
Output power 1800W
Frequency 1, 2, 3, 4s
Pulse number 1~6
Pulse space 1-100ms
RF system Spot size: 16/32mm (dia. )
RF frequency 10MHz
RF energy 1-50 J
Output power 1000W
Specification Size of machine 55x40x39cm
Controller 7.4 inch color touch LCD display
Program language English, Spanish, Italian, German, French, Turkish, Danish, Hebrew
Cooling system Japanese Semiconductor + wind + water + cooling gel
Voltage 220V(110V)/15A 50Hz(60Hz)
N. Weight 23.5kg
IPL Beauty Device with Alarm Protection System for Home Use

Our Professional Services

Fast Response

We provide 24/7 online services and guarantee to deliver the most efficient and practical solution to support your business requirements.

🛠️
After-Sales Support

All products are backed by a 1-3 years warranty combined with dedicated lifetime technical support.

🤝
Mutual Development

We design our quality products and services to bring lasting benefits and growth to your business operations.

OEM/ODM 1. Integrated professional system covering research & development, manufacture, certificates identification, and market promotion.
2. Well-structured procedures for developing new products.
3. Dedicated R&D department.
4. Successful track record of providing OEM/ODM services globally.
Clinic training Offer available
Payment method T/T, WESTERN UNION, MONEY GRAM, ESCROW, PAYPAL…
IPL Beauty Device with Alarm Protection System for Home Use
IPL Beauty Device with Alarm Protection System for Home Use

Frequently Asked Questions (FAQ)

What are the main applications of the US608 beauty device?
The device is versatile and suitable for both salon and home use. Its main functions include E-Light/IPL (for hair removal, skin rejuvenation, wrinkle removal, vascular therapy, acne removal) and RF (for wrinkle removal, skin tightening, and body lifting).
Which wavelengths are used for different skin treatments?
The machine supports multiple treatment wavelengths: 480nm for vascular treatment, 530nm for skin rejuvenation and acne therapy, 590nm for pigment treatment, 640nm for hair removal, and 690nm for breast lifting treatment.
Is the treatment painful? How does the cooling system work?
The treatment is virtually painless. It features an advanced sapphire cooling system that brings the contact temperature down to 0~10°C. This ensures maximum comfort during the procedure and prevents scarring during and after treatments.
What built-in safety features does the device have?
It features a highly responsive alarm protection system monitoring both water flow and water temperature. If any parameter goes out of safe bounds, the system automatically stops all functions instantly to protect both the operator and the machine.
Do you support custom OEM/ODM services?
Yes, OEM/ODM customizations are fully accepted. There is an integrated, professional R&D structure capable of carrying out custom designs, certifications, and product development, along with professional clinical training programs.
What warranty and after-sales support do you offer?
We offer a comprehensive 1-3 years warranty on the hardware, combined with lifetime technical support to ensure your equipment remains in optimal operating condition.
